| Coad | 663538 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1025 - 1035 | AOI(°) | 45 | |
| Substrate | UVFS JGS1 | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Inspection polished | Surface Flatness | <λ/4@633nm per CA | |
| GDD | |GDD Rs|<10fs^2,|GDD Rp|<20fs^2@1025-1035nm | Laser Damage Threshold | - | |

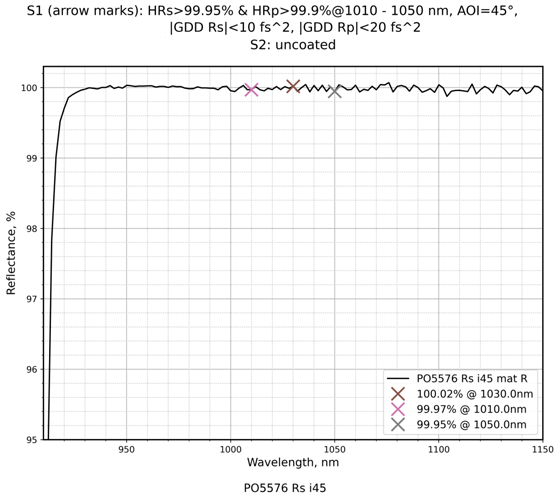

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@1025-1035nm / S2:Uncoated |
Traders City price 137.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
