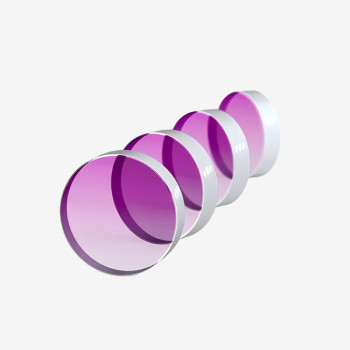

| Coad | 663537 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 38.10 | Thickness(mm) | 9.50 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1025 - 1035 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >90% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D | |
| Surface Quality S2 | Commercial polish | Surface Flatness | <λ/10@633nm over 15mm area | |
| GDD | - | Laser Damage Threshold | - | |

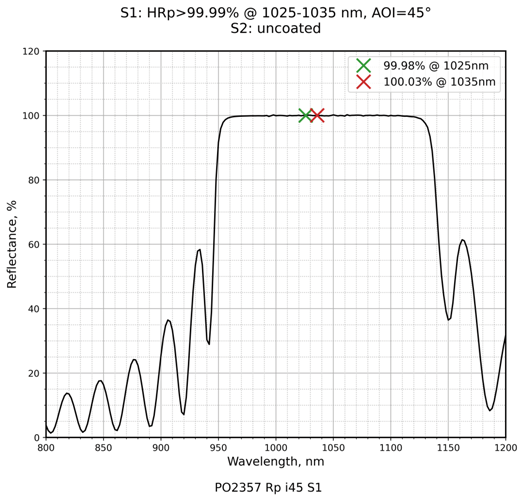

| Coating Type | IBS | Coating Specifications | S1:HRp>99.99%@1025-1035nm / S2:Uncoated |
Traders City price 457.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
