| Coad | 663535 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 0 - 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA as per MIL | |
| Surface Quality S2 | 20-10 S-D (polished) | Surface Flatness | <λ/4@633nm per CA | |
| GDD | |GDD R|<20fs^2@1020-1040nm | Laser Damage Threshold | >0.3J/cm²,1030nm,100fs,100kHz.>0.7J/cm²,1030nm,800fs,100kHz(S-on-1asperISO,200umbeamsize) | |

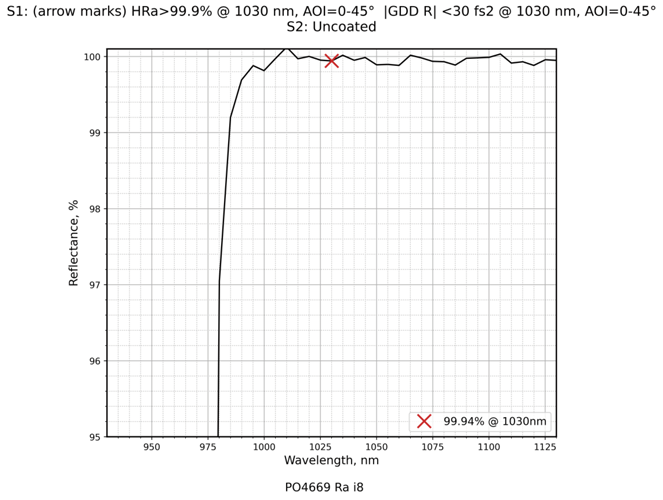

| Coating Type | IBS | Coating Specifications | S1:HRa>99.8%@1010-1050nm / S2:Uncoated |
Traders City price 195.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
