| Coad | 663534 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 5.00 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 0 - 10 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 10mm | |
| Parallelism | 30 arcmin +/-5 arcmin | Surface Quality S1 | 20-5 S-D per CA | |
| Surface Quality S2 | Polished (<60-40 S-D) | Surface Flatness | <λ/8@633nm per CA | |
| GDD | - | Laser Damage Threshold | >0.3J/cm²,1030nm,500fs,10kHz >1.7J/cm²,1030nm,10ps,10kHz | |

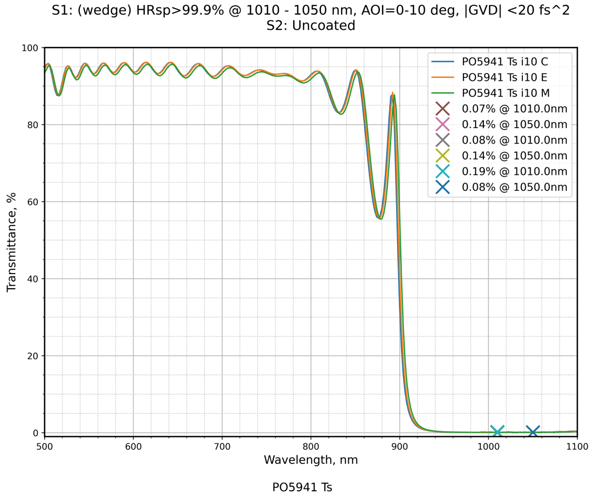

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@1010-1050nm / S2:Uncoated |
Traders City price 101.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
