| Coad | 663533 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.4 x 12.7 | Thickness(mm) | 6.00 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 0 | |
| Substrate | UVFS | Clear Aperture | ≥20 x 10mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA | |
| Surface Quality S2 | Fine grinded | Surface Flatness | <λ/8@633nm over 8mm CA | |
| GDD | |GDD R|<15fs² | Laser Damage Threshold | - | |

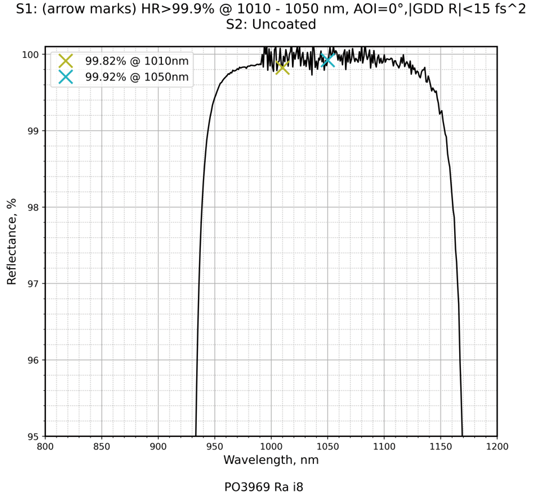

| Coating Type | IBS | Coating Specifications | S1:HR>99.9%@1010-1050nm / S2:Uncoated |
Traders City price 346.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
