| Coad | 663529 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 0 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D (MIL-PRF-13830B) | |
| Surface Quality S2 | - | Surface Flatness | <λ/8@633nm over CA | |
| GDD | |GDD R|<15fs² | Laser Damage Threshold | >0.3J/cm²,1030nm,500fs,10kHz >1.7J/cm²,1030nm,10ps,10kHz | |

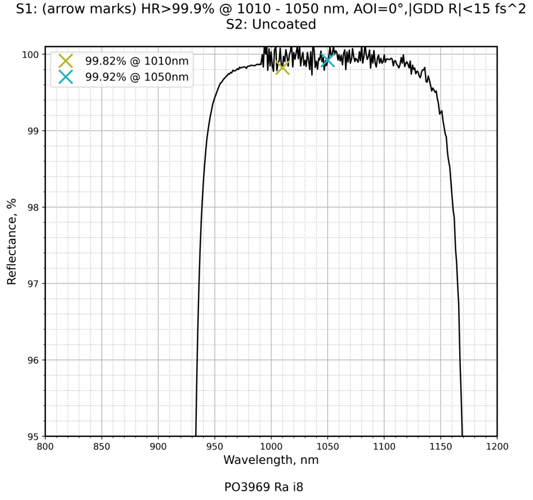

| Coating Type | IBS | Coating Specifications | S1:HR>99.9%@1010-1050nm / S2:Uncoated |
