| Coad | 663523 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 50.80 | Thickness(mm) | 9.52 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA | |
| Surface Quality S2 | Inspection Polished | Surface Flatness | <λ/8@633nm per CA | |
| GDD | |GDD Rs|<10fs²,|GDD Rp|<20fs² | Laser Damage Threshold | >0.4J/cm²,1030nm,500fs,10kHz,p-pol >0.7J/cm²,1030nm,500fs,10kHz,s-pol >2J/cm²,1030nm,10ps,10kHz,p-pol >3J/cm²,1030nm,10ps,10kHz,s-pol | |

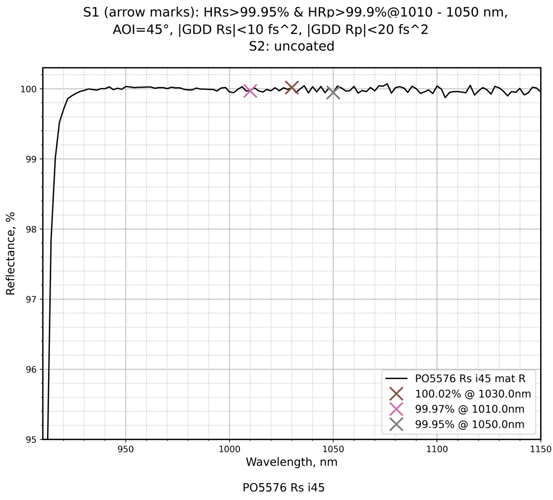

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@1010-1050nm / S2:SCC |
Traders City price 663.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
