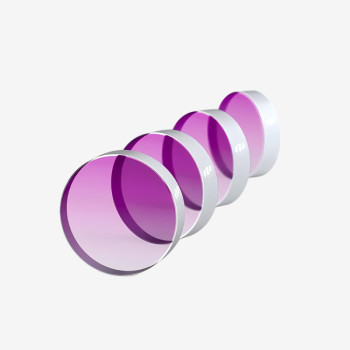

| Coad | 663521 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 30.00 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA as per MIL | |
| Surface Quality S2 | Commercial polishing (60-40 S-D) | Surface Flatness | <λ/4@633nm per CA (<λ/10 per any Dia10mm of a mirror) | |
| GDD | |GDD Rs|<10fs^2,|GDD Rp|<20fs^2 | Laser Damage Threshold | >0.3J/cm²,1030nm,100fs,100kHz.>0.7J/cm²,1030nm,800fs,100kHz(S-on-1asperISO,200umbeamsize) | |

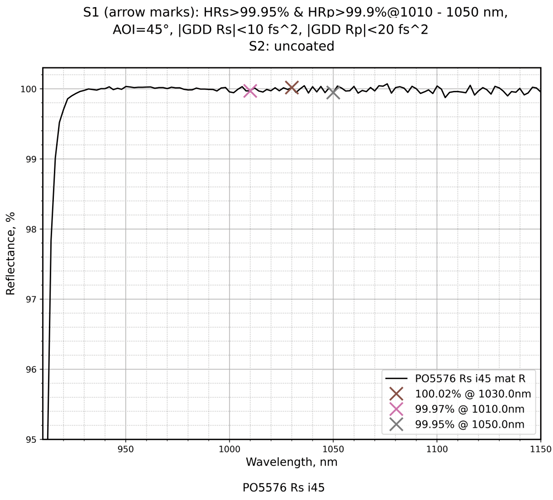

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@1010-1050nm / S2:SCC |
