| Coad | 663519 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 5.00 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1010 - 1050 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥21.6mm | |
| Parallelism | <1 arcmin | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Commercially polished | Surface Flatness | <λ/6@633nm over 10mm | |
| GDD | |GDD Rs|<10fs^2,|GDD Rp|<20fs^2 | Laser Damage Threshold | - | |

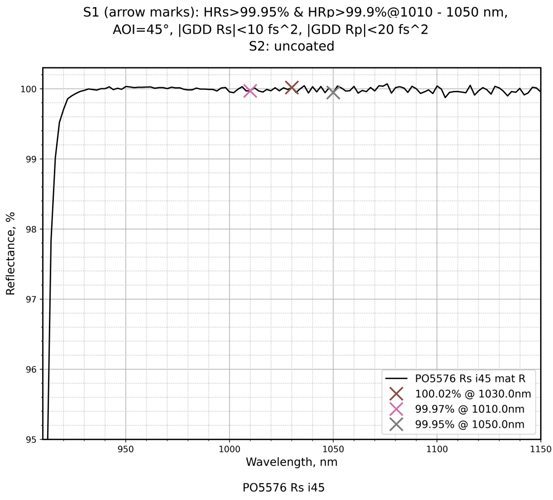

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@1010-1050nm / S2:Uncoated |
Traders City price 259.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
