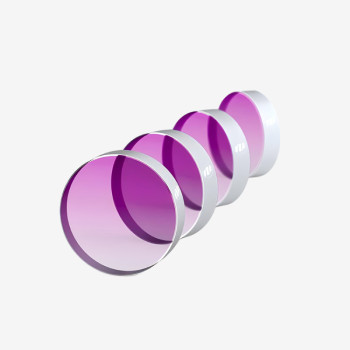

| Coad | 663514 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1000 - 1060 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥10.16mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D per CA | |
| Surface Quality S2 | Commercial polish | Surface Flatness | <λ/8@633nm over CA | |
| GDD | |GDD Rs,Rp|<20fs²@1000-1060nm | Laser Damage Threshold | - | |

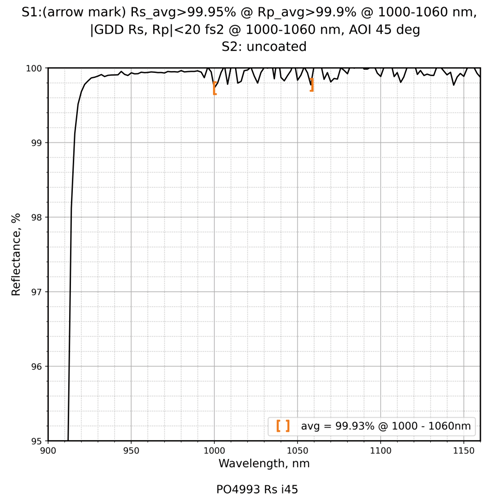

| Coating Type | IBS | Coating Specifications | S1:Rs_avg>99.95%@Rp_avg>99.9%@1000-1060nm / S2:Uncoated |
Traders City price 134.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
