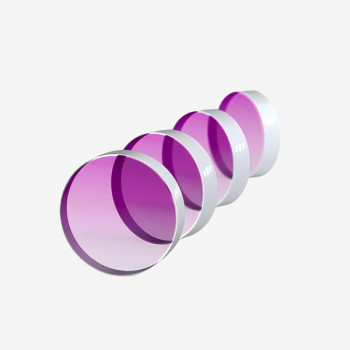

| Coad | 663513 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 980 - 1080 | AOI(°) | 0 - 4 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA | |
| Surface Quality S2 | - | Surface Flatness | <λ/8@633nm over 15mm CA | |
| GDD | |GDD R|<30fs^2 | Laser Damage Threshold | - | |

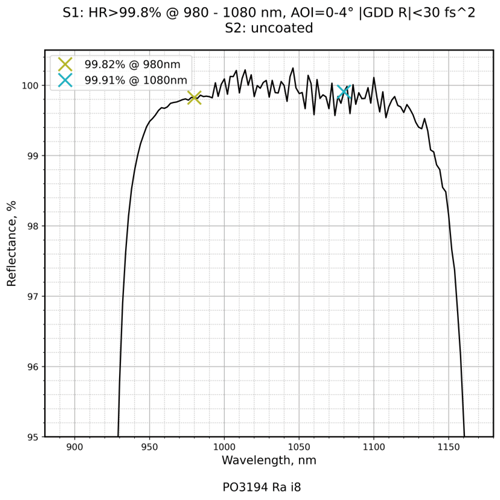

| Coating Type | IBS | Coating Specifications | S1:HR>99.8%@980-1080nm / S2:Uncoated |
Traders City price 195.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
