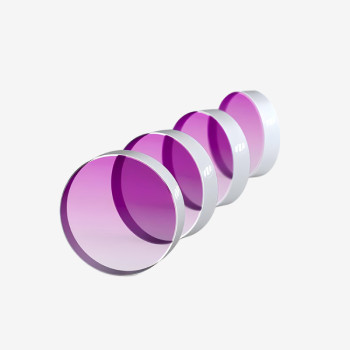

| Coad | 663512 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 50.80 | Thickness(mm) | 9.52 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 980 - 1080 | AOI(°) | 45 | |
| Substrate | UVFS JGS1 | Clear Aperture | ≥45mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | <λ/10 @ 633 nm per CA | |
| Surface Quality S2 | - | Surface Flatness | <λ/10@633nm per CA | |
| GDD | |GDD Rs|<30fs^2@960-1100nm,|GDD Rp|<30fs^2@990-1070nm | Laser Damage Threshold | - | |

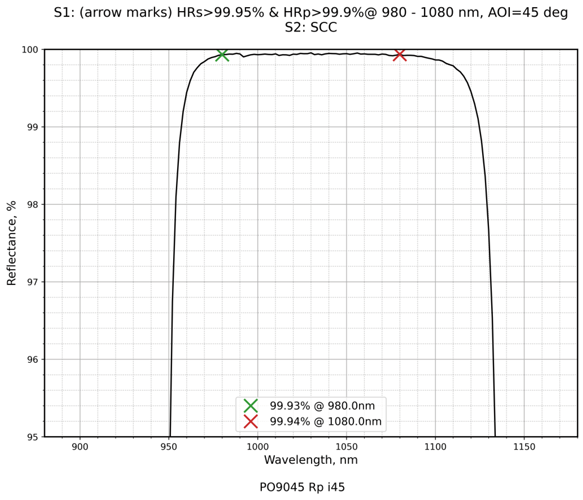

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@980-1080nm / S2:SCC |
Traders City price 706.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
