| Code | 663469 | Type | 65 mm stainless steel right-angle adapter plate | |
| Material | 303 stainless steel | Overall dimensions | 65.0 x 65.0 x 65.0mm |
| Mounting Hole Center Distance | 50mm | Mounting Hole Specifications | M6 Threaded Hole / M6 Countersunk Hole | |
| Surface Finish | Passivation | Included Mounting Screw Specifications / Quantity | M6 Socket Head Cap Screws / 8 Pieces |
Traders City price 15.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

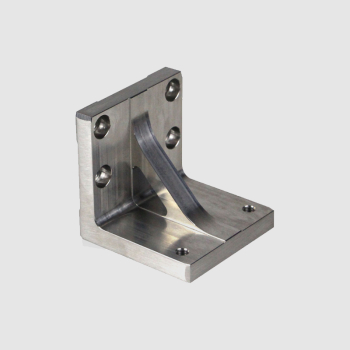

The 65 mm right-angle three-axis adapter plate provided by LBTEK features four M6 threaded holes and four M6 countersunk mounting holes. It is compatible with the EM-LSS65-50C1, EM-LSS65-30C1, and EM-LSS65-13C1 motorized stages. This adapter plate is commonly used for vertical assembly of two motorized stages. By using the right-angle adapter plate, an XY-axis motorized stage and a single-axis motorized stage can be combined into an XYZ-axis linear stage; similarly, two single-axis motorized stages can be assembled into an XZ-axis linear stage.
