| Coad | 663467 | Type | High-Power Laser Objective | |
| Wavelength(nm) | 1030 - 1064 | Work Distance(mm) | 9.50 | |
| Magnification(X) | 20 | Numerical Aperture(NA) | 0.60 | |
| Incident Aperture | - | Operating Temperature | - | |
| Resolution | 0.46μm | Mode | - | |
| Immersion Liquid | - | Focal Length | 10mm | |
| Numerical Field of View | 1.2mm | Field of View | 0.48 x 0.64mm | |
| Cover Slip Thickness | - | Thread Type | W26 x 0.706mm | |
| Parfocal Distance | 95mm | |||

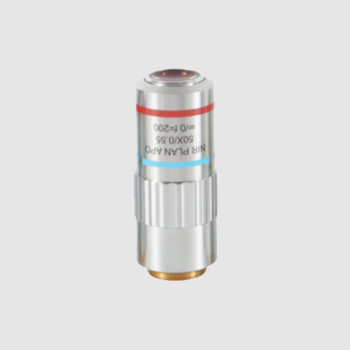

LBTEK offers high-power laser objective lenses designed for brightfield observation and laser processing in the near-infrared range. These lenses feature an infinity-corrected Plan Apochromatic design, capable of correcting from the visible to the near-infrared regions. The high-power laser objective lenses are suitable for various high-power applications, such as laser cutting or engraving. At lower power levels, they can also be used for focused laser wafer inspection. Additionally, they offer some level of transmission in the visible wavelength range, allowing for the use of guiding light such as He-Ne lasers. The laser processing wavelength range is from 1030 nm to 1064 nm, and the installation thread is M26 mm×0.706 mm external thread.
LBTEK provides high-power laser objective lenses with a wavelength range of 1030 nm to 1064 nm and magnifications of 20X and 50X. The HR type lenses feature high resolution and come with a removable protective glass that is 1.8 mm thick for easy replacement. Each objective features W26 mm×0.706 mm external threads, and using LBTEK's SM1-M26A thread adapter, these lenses can be mounted onto holders with SM1 internal threads. These high-power laser objective lenses are suitable for brightfield observation.
