| Coad | 663462 | Type | Plan Apochromatic Dry Objective | |
| Wavelength(nm) | 400 - 700 | Work Distance(mm) | 13.00 | |
| Magnification(X) | 100 | Numerical Aperture(NA) | 0.55 | |
| Incident Aperture | 2.2mm | Operating Temperature | 5 - 40 °C | |
| Resolution | - | Mode | Infinity Corrected | |
| Immersion Liquid | - | Focal Length | 2mm | |
| Numerical Field of View | 0.24mm | Field of View | 0.14 x 0.22mm | |
| Cover Slip Thickness | - | Thread Type | M26 x 0.706mm | |
| Parfocal Distance | 95mm | |||

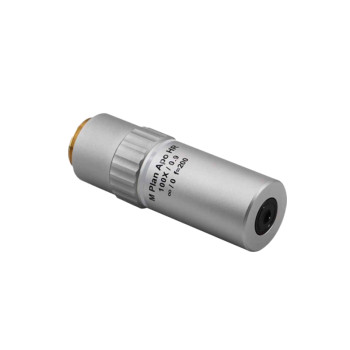

LBTEK Plan Apochromatic Objective Lenses feature an infinity-corrected Plan Apochromatic design, which corrects axial chromatic aberration, astigmatism, and field curvature for the red, yellow, and blue spectral lines. The entire field of view is flat and clear, making it the best type of microscope objective with excellent imaging quality, suitable for tube lenses with a focal length of 200 mm. The working wavelength range is from 400 nm to 700 nm, and both long working distance (SL) and standard working distance options are available. The installation thread is M26 mm×0.706 mm external thread.
LBTEK offers Plan Apochromatic Objective Lenses for the wavelength range of 400 nm to 700 nm, with magnifications of 5X, 10X, 20X, 50X, and 100X, and features an ultra-long working distance. For the 100X magnification, the working distance can reach 13 mm. Each objective has M26 mm×0.706 mm external threads, and using LBTEK's SM1-M26A thread adapter, these lenses can be mounted on holders with SM1 internal threads.
