| Coad | 663454 | Type | Plan Apochromatic Dry Objective | |
| Wavelength(nm) | 480 - 1800 | Work Distance(mm) | 20.00 | |
| Magnification(X) | 20 | Numerical Aperture(NA) | 0.40 | |
| Incident Aperture | 8.0mm | Operating Temperature | - | |
| Resolution | - | Mode | - | |
| Immersion Liquid | Air/Dry | Focal Length | 10mm | |
| Numerical Field of View | 24mm | Field of View | - | |
| Cover Slip Thickness | N/A | Thread Type | W26 x 0.706mm | |
| Parfocal Distance | 95mm | |||

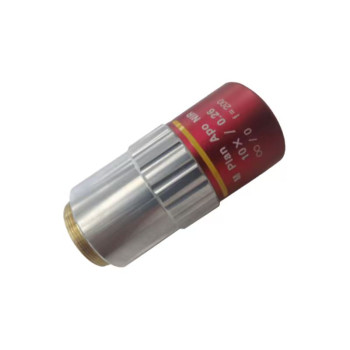

LBTEK offers Mitutoyo Plan Apochromatic Objective Lenses, which feature W26 mm×0.706 mm external threads and are designed with an infinity-corrected Plan Apochromatic design for tube lenses with a focal length of 200 mm. The Plan Apochromatic Objective corrects axial chromatic aberration, astigmatism, and field curvature for the red, yellow, and blue spectral lines, making it the best type of objective for microscopes. The entire field of view is flat and clear. LBTEK provides Mitutoyo produced Plan Apochromatic Dry Objective Lenses with magnifications of 5X, 10X, 20X, and 100X, for a working wavelength range of 436 nm to 656 nm, and magnifications of 5X, 10X, 20X, and 50X for a working wavelength range of 480 nm to 1800 nm.
LBTEK offers Mitutoyo produced Plan Apochromatic Dry Objective Lenses with magnifications of 5X, 10X, 20X, and 50X, for a working wavelength range of 480 nm to 1800 nm. Each objective can effectively focus within its working wavelength range, but when wavelengths exceed 1100 nm, the focal position may shift compared to the focus position in the visible light region. The four Plan Apochromatic Dry Objective Lenses mentioned are suitable for brightfield microscopes. Specific parameters can be found in the product specification table.
