| Coad | 663420 | Type | Plan Achromatic Dry Objective | |
| Wavelength(nm) | 400 - 700 | Work Distance(mm) | 10.60 | |
| Magnification(X) | 10 | Numerical Aperture(NA) | 0.25 | |
| Incident Aperture | 9.0mm | Operating Temperature | - | |
| Resolution | - | Mode | Infinity Corrected | |
| Immersion Liquid | Air/Dry | Focal Length | 18mm | |
| Numerical Field of View | 22mm | Field of View | - | |
| Cover Slip Thickness | N/A | Thread Type | W20.32 x 0.706mm(RMS) | |
| Parfocal Distance | 45mm | |||

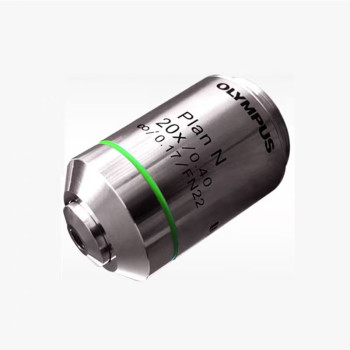

LBTEK offers Olympus Plan Achromatic Objective Lenses, which feature standard RMS threads and are designed with an infinity-corrected Plan Achromatic design for tube lenses with a focal length of 180 mm. The Plan Achromatic Objective effectively corrects field curvature and distortion, as well as chromatic aberration for two wavelengths in the visible spectrum, providing excellent flatness of the field and minimizing spherical and chromatic aberrations. LBTEK provides Olympus-produced Plan Achromatic Dry Objective Lenses with magnifications of 4X, 10X, 20X, and 40X.
LBTEK offers Olympus-produced Plan Achromatic Dry Objective Lenses with magnifications of 4X, 10X, 20X, and 40X. Each lens is equipped with standard RMS threads, and can be mounted onto holders with SM1 internal threads using LBTEK's SM1-RMSA thread adapter. These four Plan Achromatic Dry Objective Lenses are suitable for brightfield microscopes, with the 10X, 20X, and 40X magnification models also being suitable for darkfield microscopes.
